Why Is My DeWalt Drill Not Working?

Start with battery seating, charge, and control positions before assuming an internal fault. Remove the battery before inspecting the chuck, changing a bit, or cleaning accessible contacts.

Look for cracks, melted areas, dirt, or damaged contacts in the battery bay. Wipe accessible contacts with a clean, dry cloth; don't scrape them with metal or apply liquid.

If everything looks sound, refit the battery until its latch engages. Keep the bit clear of people and loose objects before briefly trying the trigger.

Use the symptom to choose your next check:

Nothing happens: check charge, battery seating, and the direction switch.
The light works but the motor doesn't: check the controls, then try another compatible charged pack if available.
The drill runs but the bit slips: check the chuck grip with the battery removed.
It stops during a hole or screw: check for binding, low charge, heat, or a slipping clutch.

Is your DeWalt drill not working because the trigger is locked?

The direction switch can lock the trigger in its center position. Release the trigger, then move the switch fully into forward or reverse as your manual directs.

Don't force a stiff switch or trigger. Also check that the gear selector is fully engaged, moving it only with the motor stopped and according to the manual.

Is the bit loose or stuck?

A loose bit can spin inside the chuck, while a stuck bit can stall the drill. With the battery removed, check that the chuck grips the bit's shank securely and that the bit isn't bent.

Don't hold the chuck while the motor runs to tighten it. Avoid pliers or a wrench unless your model's manual specifically permits them.

How can you separate a battery fault from a charger fault?

The clearest check is substituting one compatible, working part at a time, if you already have access to one. Buying both parts immediately can leave you with extras and an unresolved drill fault.

First, confirm the outlet has power using a lamp or another suitable device. Inspect the charger's cord, seat the battery correctly, and interpret its lights using that charger's manual.

A charge delay can relate to battery temperature. Let the pack reach the charging conditions stated in its manual naturally; don't heat it, chill it, or keep forcing charging attempts.

If another compatible charged battery runs the drill, focus on the original pack and its charging path. If another compatible pack charges on the same charger, the original battery becomes the stronger suspect.

If multiple compatible charged packs won't run the drill, seek service for the tool. A work light or battery gauge alone doesn't prove the battery can support the motor under load.

For platform differences, see DeWalt 20V MAX vs XR. Match the battery models in your manual rather than choosing by the XR name alone.

Which charger or battery kit should you buy?

Buy a charger only for a charging problem, or a compatible battery kit when you need a replacement pack and charger together. None of these products repairs a damaged trigger, chuck, or gearbox.

The shared DeWalt brand doesn't make every battery suitable for every drill. A charger can accept several battery platforms while each tool still requires its own supported pack.

DCB1104: for an existing battery that needs a charger

The DeWalt DCB1104 suits someone with a serviceable battery and a failed or missing charger. It supports DeWalt 12V MAX, 20V MAX, and FLEXVOLT batteries, so it also fits a charging area serving those platforms.

This is a 4 A, single-port charger with a two-stage LED indicator. Its two-screw wall-mount option helps keep a bench clear; mounting screws are sold separately.

Skip it if you need a battery too or your existing charger works normally. Charge time varies with the pack and its condition, so don't assume every battery will finish in the same time.

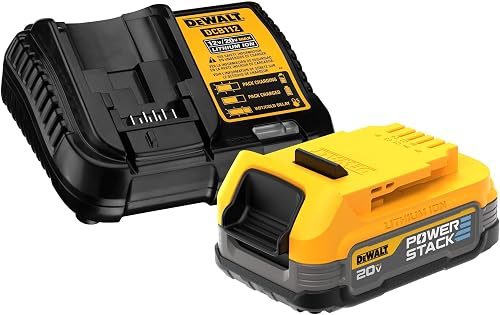

DCBP034C: for compact 20V MAX use

The DeWalt DCBP034C starter kit suits a compatible 20V MAX drill used in cabinets, shelving, or other confined spaces. It includes a DCBP034 XR POWERSTACK compact battery and a charger.

The battery has an LED charge indicator and an overmolded base designed for impact resistance. Its compact design makes it the choice here when maneuverability matters most.

Skip this kit for a 12V MAX drill or if you only need a charger. A different battery won't solve a loose chuck or a motor that fails with other compatible charged packs.

DCB205C: for longer 20V MAX work sessions

The DeWalt DCB205C kit suits compatible 20V MAX users who want a 5 Ah pack for longer work sessions. It pairs the DCB205 battery with the DCB1104 charger.

The battery's 3-LED fuel gauge lets you check charge before starting. Capacity helps you plan work between charges, but it doesn't guarantee a fixed number of holes or screws.

Skip it for a 12V MAX tool or when your priority is a compact setup for occasional short jobs. If the drill itself needs replacing, compare complete tool options in our best DeWalt drills guide first.

Why does the drill slow down or stop under load?

Slowing or stopping usually calls for less load, a suitable bit, or more charge, rather than harder pressure. Release the trigger promptly when the bit stops turning.

Remove the battery before freeing a jam. Check for a dull bit, packed flutes, an oversized hole, or an obstruction in the work.

Secure the workpiece and keep the bit aligned with the hole. Use steady pressure, clearing chips as appropriate for the material, instead of leaning on a struggling motor.

If the tool becomes hot, allow it to cool as its manual directs. Repeatedly pulling the trigger against a stalled bit adds strain without correcting the cause.

For masonry, check that the tool and bit suit the material. Our guide to drilling concrete with a cordless drill explains when a different setup is needed.

Is the clutch slipping while driving screws?

A low clutch setting can stop the chuck under resistance even when the drill is working normally. Start low for screws and increase gradually until the fastener seats without stripping its head or damaging the surface.

Use drill mode for suitable drilling tasks as the manual directs. Don't treat that mode as a cure for every stall, since it removes the clutch's usual limit on driving force.

Choose the gear range for the job, with the motor stopped before shifting. The guide to using a cordless drill explains these controls.

For repeated screw work, our drill versus impact driver guide can help you choose the right tool instead of overloading the drill.

What if the motor runs but the chuck won't turn?

Check the clutch and gear selector first, then stop if normal settings don't restore chuck movement. Persistent grinding, uneven rotation, or a stuck chuck needs service.

With the battery removed, confirm that the bit isn't simply slipping inside the jaws. A stationary chuck and a slipping bit are different problems.

Don't force the chuck or open the gearbox to investigate. Describe whether the motor runs, whether the chuck moves, and which settings you checked when arranging repair.

How should you care for the drill after it works again?

Keep vents clear, contacts clean, and batteries stored as their manual directs to reduce avoidable interruptions. Remove the battery before cleaning and use methods approved for your model.

Before each job, check the bit, chuck grip, direction, gear, and charge. Start with a brief run clear of the work, then stop if noise or vibration seems unusual.

Keep packs away from water and loose metal objects. Don't open them, bridge their contacts, or use adapters to force an unsupported battery onto a tool.

When should you contact DeWalt support?

Seek service when basic checks and a compatible charged battery don't restore normal operation. Stop immediately for smoke, burning smells, melted contacts, a cracked pack, or internal grinding.

Have the tool, battery, and charger model numbers ready, plus a description of the symptom. Note whether the fault happens immediately or only under load.

If repair isn't practical, use our DeWalt drill guide to compare replacements. The DeWalt DCD771C2 review covers one specific option.

What should you do next if your DeWalt drill isn't working?

For a DeWalt drill not working, identify the failed part before spending money. Choose the DCB1104 for a charger-only need, the DCBP034C for a compact compatible battery setup, or the DCB205C for longer 20V MAX work sessions.

If compatible charged packs don't help, arrange service instead of buying more charging gear. Once the fault is resolved, use the cordless drill use guide to set up the next job correctly.

Frequently asked questions

Why does my DeWalt drill have power but not spin?

A work light doesn't confirm that the drill can drive its motor. Release the trigger and check that the direction switch is fully in forward or reverse and the gear selector is engaged.

If a compatible charged battery doesn't restore operation, stop and seek service rather than forcing the controls.

Why does my DeWalt drill stop while I am using it?

A drill may stop because of low charge, a binding bit, excess heat, or a load it can't handle. Release the trigger and remove the battery before checking the bit.

Let a hot tool cool according to its manual, and correct the cause before trying the same job again.

Can I use any DeWalt battery in my drill?

No. Use only a battery that your drill's manual identifies as compatible.

DeWalt 12V MAX and 20V MAX are different battery platforms, and a charger that accepts several platforms doesn't make those batteries interchangeable in tools. Confirm the battery model before fitting a replacement pack to your drill.

When should I stop troubleshooting a DeWalt drill?

Stop using the drill if you see smoke, smell burning, find a cracked battery or tool housing, or notice melted contacts. Don't open the battery pack or try to repair internal electrical parts.

Disconnect the battery if safe, then contact DeWalt support or an authorized service center.
